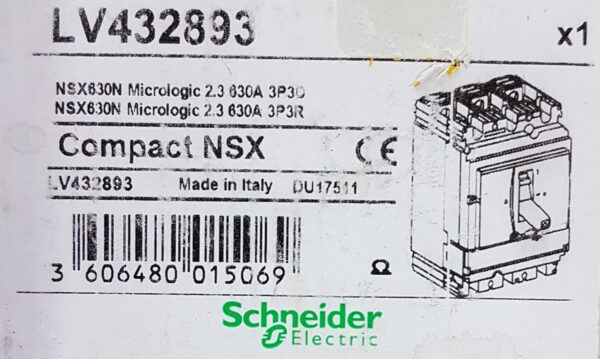

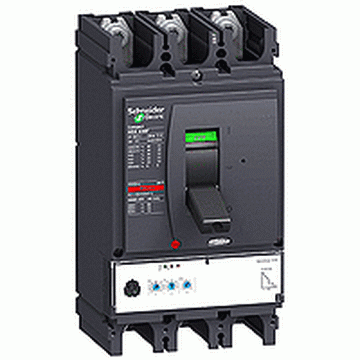

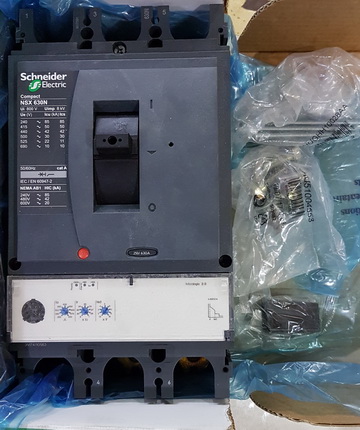

DescriptionCircuit Breaker Schneider Compact NSX630N – Micrologic 2.3 – 630 A – 3 poles 3d  – LV432893, 800V~, 50/60 HZ. Made in ITALYcircuit breaker Compact NSX630N – Micrologic 2.3 – 630 A – 3 poles 3d  – LV432893Quick Overview – Compact NSX – LV432893Mainrange : Compactproduct name : Compact NSXproduct or component type : Circuit breakerdevice short name : Compact NSX630Ndevice application : Distribution Details – Circuit breaker – Compact NSX630NComplementarycontrol type : Togglemounting mode : Fixedmounting support : Backplateupside connection : Frontdownside connection : Frontauxiliary contact composition : Withoutmechanical durability : 15000 cycleselectrical durability : 2000 cycles 690 V In conforming to IEC 60947-2 4000 cycles 440 V In conforming to IEC 60947-2 6000 cycles 690 V In/2 conforming to IEC 60947-2 8000 cycles 440 V In/2 conforming to IEC 60947-2connection pitch : 45 mmlocal signalling : LED 90 % Ir LED ready LED 105 % Irlong time pick-up adjstment type Ir : Adjustable 9 settingslong time pick-up adjustment range : 0.9…1 x Iolong time delay adjustment type : Fixed[tr] long-time delay adjustment : 16 s 6 x Irthermal memory : 20 minutes before and after trippingshort-time pick-up adjustment type Isd : Adjustable 9 settings[Isd] short-time pick-up adjustment range : 1.5…10 x Irshort-time delay adjustment type : Fixedinstantaneous pick-up adjustment type Ii : Fixedinstantaneous pick-up adjustment range : 6900 Aheight : 255 mmwidth : 140 mmdepth : 110 mmproduct weight : 6.2 kgAdditional Information – Compact NSX630N – Compact – LV432893ManufacturerSchneiderCode EAN3606480015069Plus d’infos·       Environment·       electrical shock protection class : Class II·       standards : EN 60947-2 UL 508 IEC 60947-2·       product certifications : UL CSA·       IP degree of protection : IP40 conforming to IEC 60529·       IK degree of protection : IK07 conforming to IEC 62262·       ambient air temperature for operation : -35…70 °C·       ambient air temperature for storage : -55…85 °C·       Offer Sustainability·       Sustainable offer status : Green Premium product·       RoHS (date code: YYWW) : Compliant  – since  0839  –  Schneider Electric declaration of conformity·       REACh :·       Product environmental profile : Available·       Product end of life instructions : Available
